Stage plot maker: A stage plan the crew can read.
The stage plot maker puts your players, input channels and monitor mixes on one plan, and prints it with a matching input list on Letter or A4.
Sign in to save an editable starter plot and an editable starter show across your account. Live Show Plus adds saved variants and venue links for $5/month or $29/year, and Unlimited includes it. Mastering and paid Release manager features use their own access.
What you get

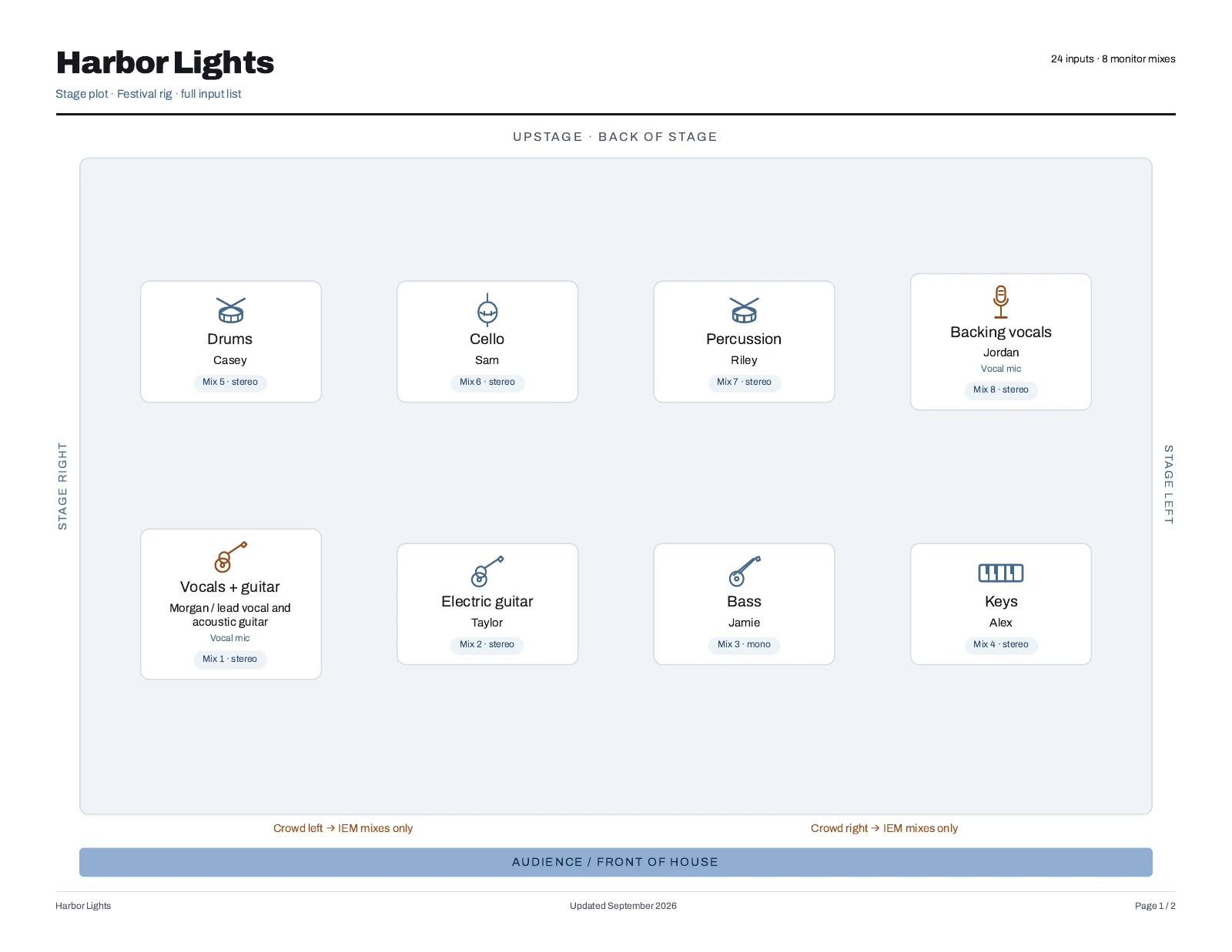

- Everyone in the right place. Players and instruments on a labelled stage, with stage left, stage right and the audience edge marked.

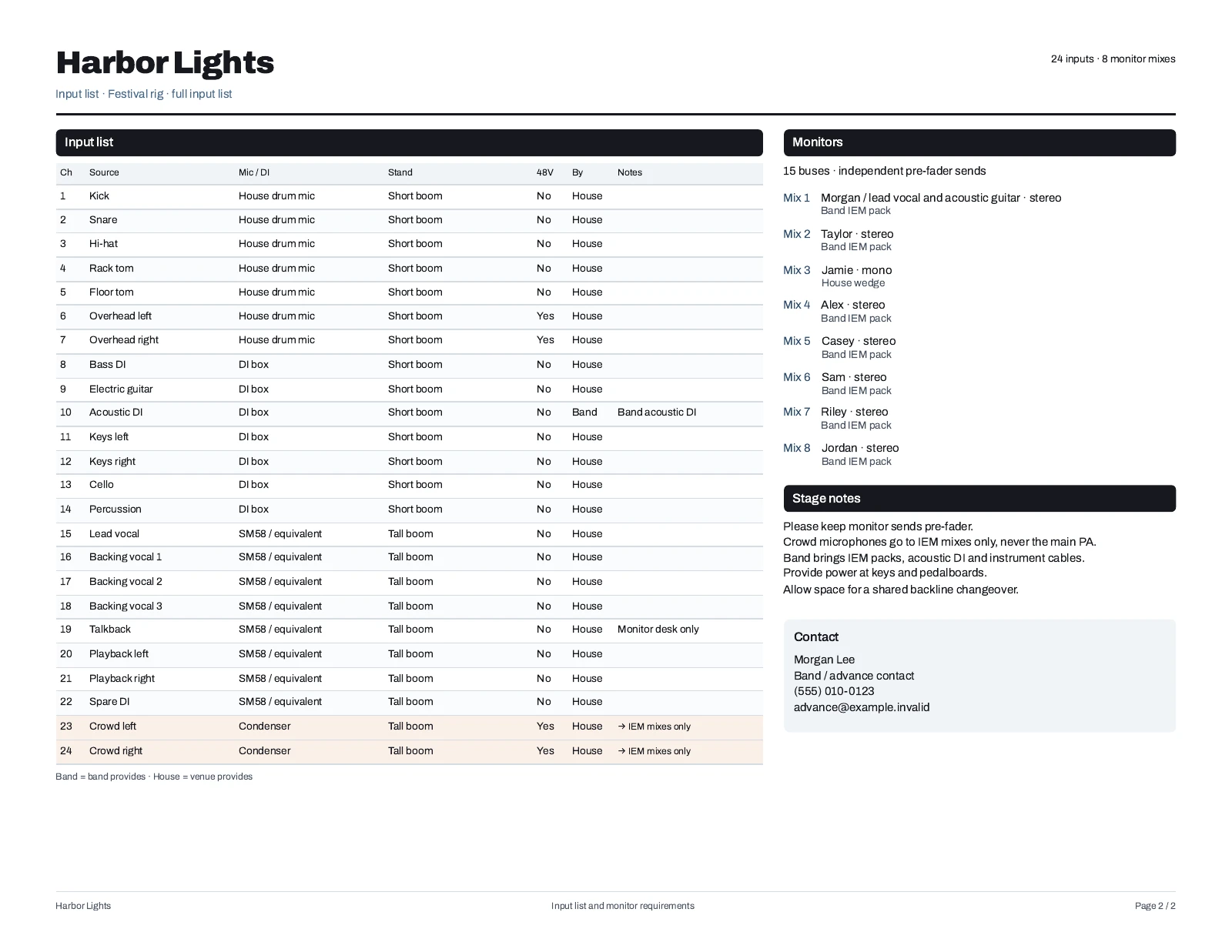

- An input list that matches. Source, mic or DI, phantom power and notes for up to 24 channels, printed with the plot.
- Monitor mixes spelled out. Up to eight mixes, mono or stereo, with IEM or wedge notes for each player.
- Ready for the next show. Start from a template, import channels from a spreadsheet and save setups for your artist.
From rehearsal setup to venue-ready document.
Place the players
Add your band members and instruments, then position them on the stage grid. Stage left, stage right and the audience edge stay labelled so the crew can orient the document.
Write the input list
List each channel’s source, microphone or DI, phantom-power requirement and notes. Match the channel names to your actual setup before sending the plot to a venue.
Describe the monitor mixes
Assign a mix to each player and state whether it is mono or stereo. Include your IEM or wedge notes and any stage instructions the engineer needs to see.
Save a setup for the next show
Keep named plots with your artist. Copy a saved plot for a different lineup or venue, adjust it, and print the version you intend to use.
The working stage opens here with the Rock band starter. If it does not appear, open the stage plot maker.
Try it here · the Rock band starter from the tool’s own templates. Nothing is saved; saving needs your account.Moving a player keeps channel numbers; the arrows reorder the patch.
What should a stage plot include?
Show where people stand, what they play and what the engineer needs to connect. Pair the diagram with an input list, monitor assignments and clear contact or setup notes.
A stage plot describes your requirements. Confirm microphones, DIs, stands, monitor availability and changeover arrangements with the venue before show day.
Stage plot questions.
Is the stage plot maker included with Unlimited?
Sign in to save an editable starter plot and an editable starter show across your account. Live Show Plus adds saved variants and venue links for $5/month or $29/year, and Unlimited includes it. Mastering and paid Release manager features use their own access.
Retained plots remain readable and printable after paid access ends.
Can I download a stage plot PDF?
Choose Letter or A4, full document or stage only, and color or monochrome. Use Print / Save PDF in the editor, then choose Save as PDF in your browser. The full document adds input, monitor and contact pages as needed.
How large a band can I lay out?
A plot supports up to eight players, 24 input channels and eight monitor mixes. Mono and stereo mix choices are separate from the player positions.
Can I keep different versions for different shows?
Yes. Name and save each setup under your current artist, or copy an existing plot and edit the copy. Review the names and notes before sharing the printed document.
Have the setup ready before soundcheck.
Give the engineer a readable picture of the band, with the channel and monitor details alongside it.
